KomTec Turning Station - Butterfly Station

The donor table (wooden frame construction table) can be supplemented immediately or later with a receiver table. This is how you get a powerful turning station.

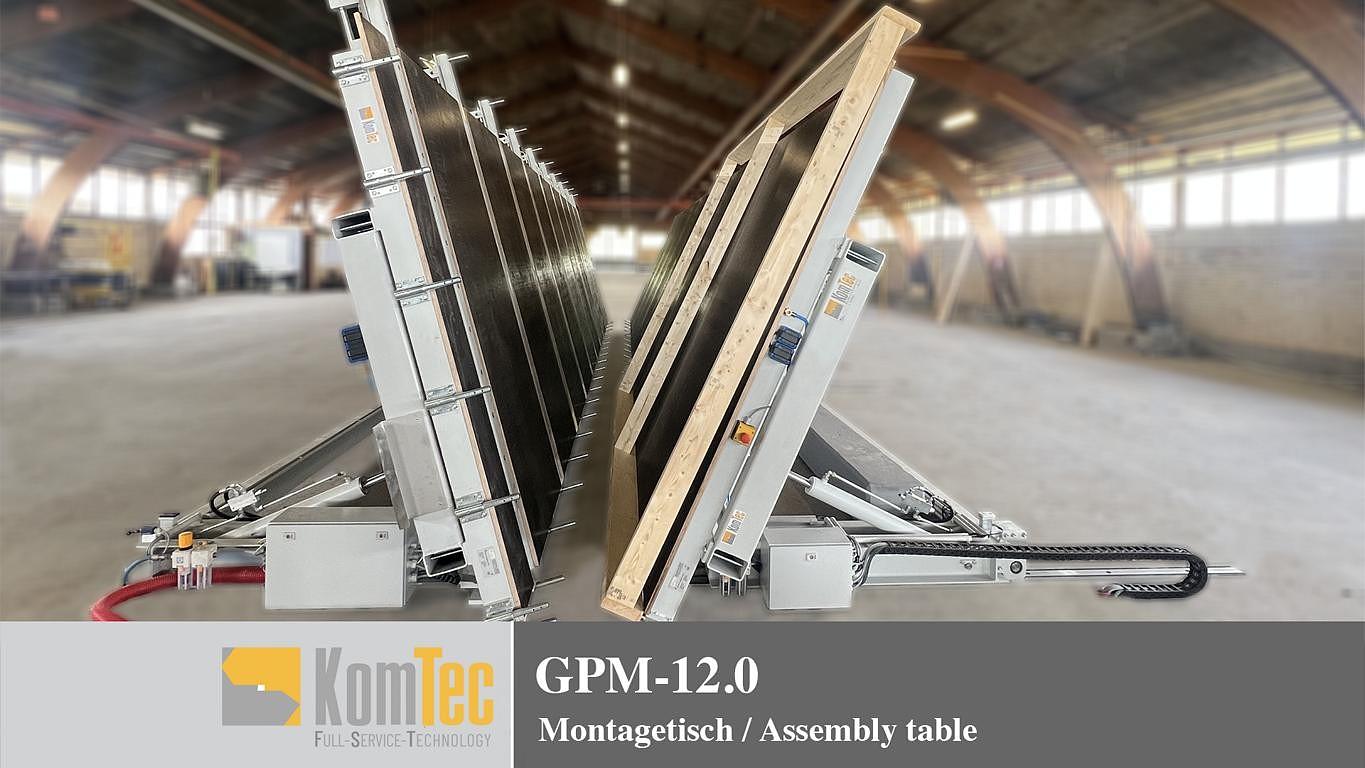

KomTec - assembly table GM (transmitter table)

The variable assembly station (timber frame construction table) for universal use in the assembly of wall, gable, roof and ceiling elements paneled on one or two sides as well as knee sticks in frame construction.

Heavy basic structure of the machine frame for an absolutely flat work surface.

The assembly station on which the frame work and the beam layer can be laid out, clamped and nailed at the exact angle.

The width adjustment and the pressing of the elements takes place motorized at the push of a button.
The framework is positioned via a movable pressure beam using motor-driven precision threaded spindles.
Subdivided press beam for the simultaneous processing of 2 wall elements of different heights.
The pressing pressure can be continuously adjusted using an overcurrent relay.

The spindle drive ensures that the wall elements are pressed absolutely parallel, even if several small wall elements are being produced on the station at the same time.

As far as is technically possible, the stations are covered over the entire surface for the laying out of individual frame constructions.
The working height of the stations is 700 mm.
The heavy mechanical engineering is the basis for absolutely flat elements with an element weight of up to 4.0 t.
The stations are delivered completely finished and functional. All that is required to set up the systems is a level, load-bearing floor and electrical and compressed air connections.
System grid beams with locking pins are installed transversely in the work surface of the station for inserting the locking pins, for pressing wall elements and knee sticks with a height of less than 2.40 m and for pressing cylinders for sloping wall constructions.
Stop at the bottom and on the left with 38 plug-in reversible bolts in rustproof design, distance between the mounts for the stop bolts, approx. 600 mm.
Installation device up to 80°(95°) inclination angle.

Front end of station 2 electrical and compressed air connections for connecting handheld devices.

The stations are built on a modular principle so that they can be supplemented with a receiving station to form a complete turning station (must be specified when ordering!).

Working area length (element width): from min. 1,000 - max. 12,000 mm Working area width (element height): from min. 595 - max. 3,500 mm Adjustment range of the pressure bar: from min. 2,400 - max. 3,500 mm Stop height (element thickness): up to 150 mm working height /Table height:700mm

If a receiver table is used later, the 350 mm stop height is problematic.

Receiver Table M Universal

This table has a heavy basic construction of the machine frame for a flat work surface. Paneling of the work surface with multi-ply wood panels. 12 stop bolts below for taking over the wall elements, height 120 mm.

On the front sides there is an electrical connection (240V, 16A) and a pneumatic connection (R1/4 inch) for the use of hand tools such as nailers or guns.

Pivoting via 3 hydraulic cylinders for element weights up to 4,000 kg at an angle of 85°.

Safety valves on the cylinders prevent accidental lowering of the work surface.

For the supply from the transmitter to the receiver, a cable duct of at least 200 x 200 mm must be produced by the customer free of charge according to our specifications.

Equipping the recipient with motorized travel up to 2 m on large profile wheels and flat running rails. For different wall thicknesses, the transfer distance to the encoder can be set to 3 positions using a selector switch. Additional ballast insert integrated in the holder as a tilt protection. Drive via geared motor with soft start. Supply via moving cable drag chain from below.
